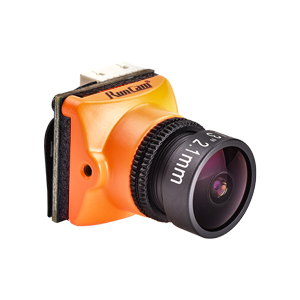

RunCam Micro Swift 3

RunCam Micro Swift 3

Your Price: $35.99
In Stock.
Part Number:RC-MICROSWIFT3

Choose Options

Lens Type
2.1mm (M8, small)
2.3mm (M8, small)
2.1mm (M12, large)
2.3mm (M12, large)
Notes from the Team-Legit tech department:
RunCam has discontinued the Swift!  Micro is the new mini...the Micro Swift 3 is the new "default" camera for FPV!  It is offered in two body styles.  The larger M12 lens cameras fit the classic size lenses which FPV has used for years.  These are the same size lenses that the original Swift and pz0420m cameras used, and offer slightly higher image quality.  Alternatively, the smaller M8 lens cameras accept physically smaller lenses, are are great for 3" and 2" quadcopters, or any application where size is at a premium.


If you have an aircraft with the older size camera mounts, such as for the original RunCam Swift, worry not!  These sturdy brackets (sold separately) enlarge the camera's footprint to that of the Swift.


From RunCam...

RunCam Micro Swift 3
RunCam Micro Swift 3

THROW AWAY
YOUR MENU CABLE

CONTROL YOUR MICRO SWIFT 3 REMOTELY

MICRO SIZE BODY
REGULAR SIZE LENS

RunCam Micro Swift 3

Dimensions

  • RunCam Micro Swift 3
  • RunCam Micro Swift 3
  • RunCam Micro Swift 3RunCam Micro Swift 3

Package

  • RunCam Micro Swift 3 Package
    1x Camera
  • RunCam Micro Swift 3 Package
    1x Aluminum bracket
    RunCam Micro Swift 3 Package
    1x 6pin FPV silicone cable
  • RunCam Micro Swift 3 Package
    1x Set of screws
    RunCam Micro Swift 3 Package
    1x Manual

1. Flight controller wiring

Note: Take UART3 for example
RunCam Micro Swift 3

2. Betaflight 3.3 or above setting

RunCam Micro Swift 3

3. Remote control

Note: Take Mode-2 for example
RunCam Micro Swift 3
Parameters
ModelMicro Swift 3
Image Sensor1/3" SONY Super HAD II CCD
Horizontal Resolution600TVL
Lens2.1mm ?(M12)? FOV165° / 2.3mm(M12) FOV 150°
Signal SystemPAL / NTSC
Integrated OSDYes
One Key ScenePersonal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
S/N Ratio>60dB (AGC OFF)
Electronic Shutter SpeedPAL: 1/50~100,000; NTSC: 1/60~100,000
Auto Gain Control (AGC)Yes
Min. Illumination0.01Lux@1.2F
WDRD-WDR
DNR2DNR
Day/NightColor/Auto/B&W
Remote ControlFlight Controllers : BetaFlight 3.3 / ButterFlight 3.4 / Cleanflight 2.2
PowerDC 5-36V
Current60mA@12V / 120mA@5V
Net Weight9g(2.3mm) / 11g(2.1mm)
DimensionsL19mm*W19mm*H25mm
